surface grinding machine

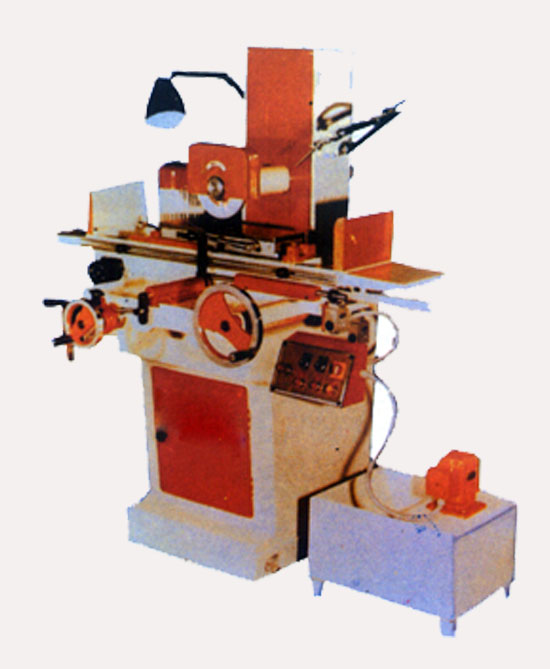

Surface Grinding Machine

200,000.00

In Stock

These products are the result of our long year of experience in the manufacturing of precision horizontal surface griding
Machines which require power design careful selection of materials, proper manufacturing techniques and craftsmanship.

ENQUIRY Download Catalog
 DESCRIPTION  UNITS  PSG-200  PSG-200  PSG-300
 TABLE
 WORKING SURFACE  MM  200*600  200*600  300*600
 LONGITUDINAL TRAVERSE  MM  530  630  630
 TABLE TRAVERSE PER REV. OF HAND WHEEL  MM  100  100  100
 NO OF T-Slots  No.  1  2  2
 CROSS FEED
 TOTAL CROSS TRAVERSE  MM  220  270  320
 MOVEMENT PER REV OF HAND WHEEL  MM  5  5  5
 HAND WHEEL GRADUATION  MM  0.01  0.01  0.01
 FINE FEED GRADUATION  MM  0.005  0.005  0.005
 WHEEL HEAD
 VERTICAL MOVEMENT  MM  310  310  330
 SIZE OF GRINDING WHEEL  MM  200*13*31.75  200*13*31.75  200*20*31.75
 SPEED OF GRINDING WHEEL RPM  2880  2880  2880
 CAPACITY BETWEEN WHEEL & TABLE  MM  275  275  275
 WHEEL FEED
 MOVEMENT PER REV. OF HAND WHEEL  MM  1  1  1
 HAND WHEEL GRADUATION  MM  0.01  0.01  0.01
 FINE FEED GRADUATION  MM  0.005  0.005  0.005
 ELECTRICALS
 WHEEL HEAD MOTOR  k.w.  0.75  0.75  1.1
 Table feed motor  k.w.  0.75  0.75  0.75
 Hydraulic pump motor  k.w.  0.75  1.5  1.5
 Coolant pump motor  k.w.  0.10  0.10  0.10
 Auto lubrication motor  k.w.  0.09  0.09  0.09
 FLOOR SPACE REQUIRED
 Length Width  MM  1900*1420  2185*1225  2450*650
 Length Width Height of machine  MM  1450*1140*1575  1575*1245*1575  1850*1350*1575
 Length Width height of machine  MM  1750*1300*1800  1750*1300*1800  1850*1400*1800
  • Machine lamp
  • Diamond dresser
  • Coolant system with tank
  • Permanent megnatic chunck
  • Fine feed for cross/ vertical Movement
  • Wheel desser mounted on wheel head
  • Antifrication material for gudieways
  • Wheel flange
  • Flange puller
  • Grinding hand tools
  • Spindle locking spanner
  • Clamp bolts & table guards
  • Table mounted wheel dressing bock
  • Automobiles
  • Die & Mould Manufacturers
  • Aerospace
  • Medical Equipment
  • Textile Machinery
  • Diamond & Jewellery Industries
  • Allied Machinery
  • Plastic Processing Machinery
  • Defence

We welcome any query regarding  product

.

Surface Grinding Machine

These products are the result of our long year of experience in the manufacturing of precision horizontal surface Grinding
Machines which require power design careful selection of materials, proper manufacturing techniques and craftsmanship.

Optional Accessories

  • Machine lamp
  • Diamond dresser
  • Coolant system with tank
  • Permanent megnatic chunck
  • Fine feed for cross/ vertical Movement
  • Wheel desser mounted on wheel head
  • Antifrication material for gudieways

Standard Accessories

  • Wheel flange
  • Flange puller
  • Grinding hand tools
  • Spindle locking spanner
  • Clamp bolts & table guards
  • Table mounted wheel dressing bock

Applications

  • Automobiles
  • Die & Mould Manufacturers
  • Aerospace
  • Medical Equipment
  • Textile Machinery
  • Diamond & Jewellery Industries
  • Allied Machinery
  • Plastic Processing Machinery
  • Defence
